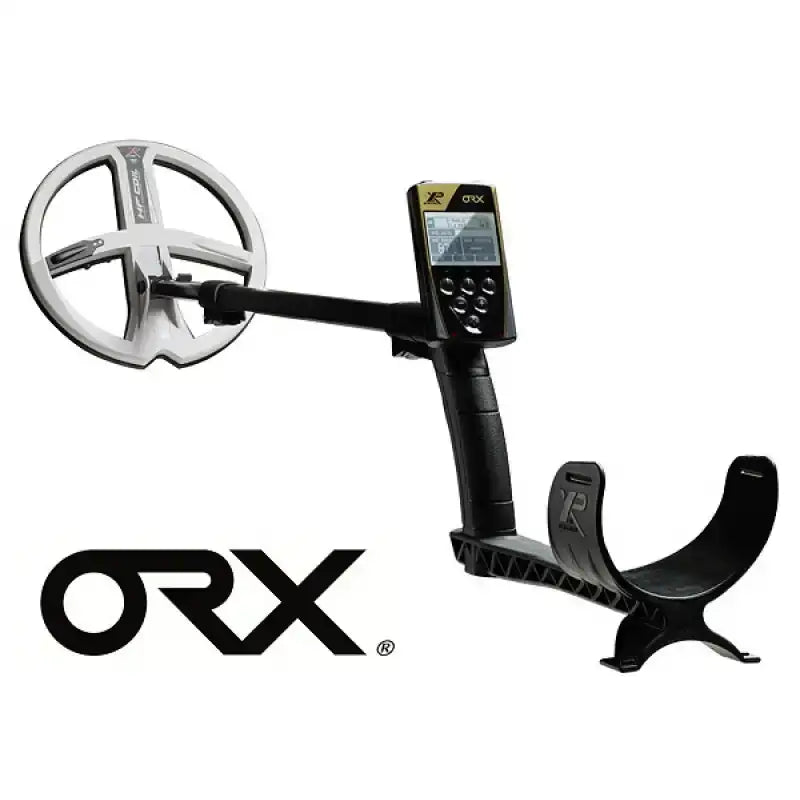

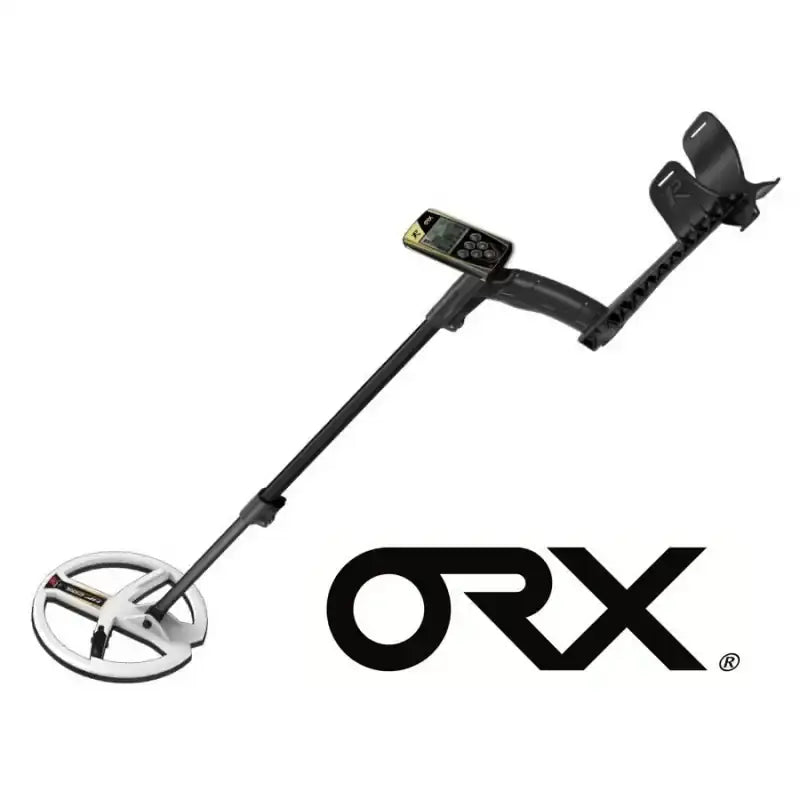

XP - ORX 22HF Metal Detector - Light, Wireless and Precise

Combines performance and ease of use

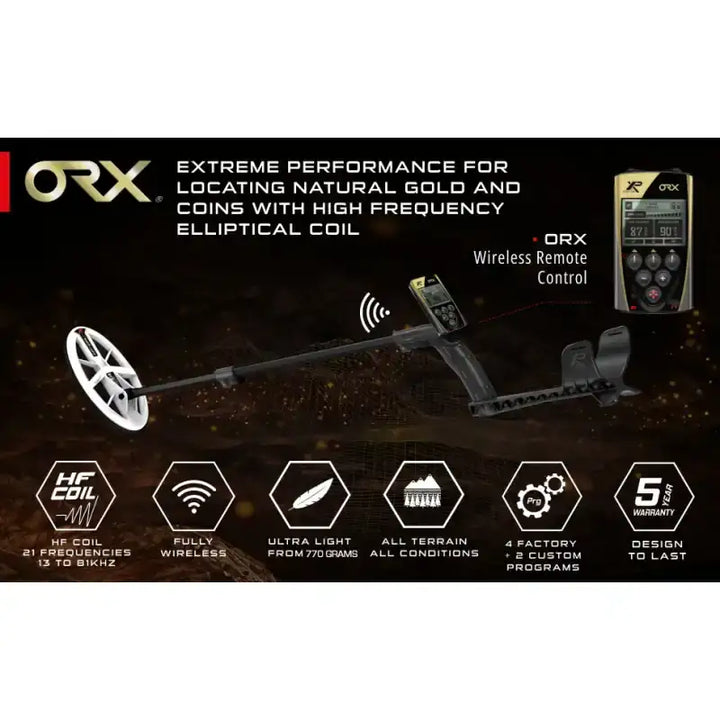

The XP ORX is designed as a lighter and more user-friendly version of the top-of-the-line XP Deus. It delivers many of the same features at a lower price, and is particularly well-suited for searching for coins, jewelry, collectibles and natural gold in challenging terrain. With high sensitivity and lightning-fast signal processing, the ORX can find objects that many other metal detectors miss.

Frequency and search functions

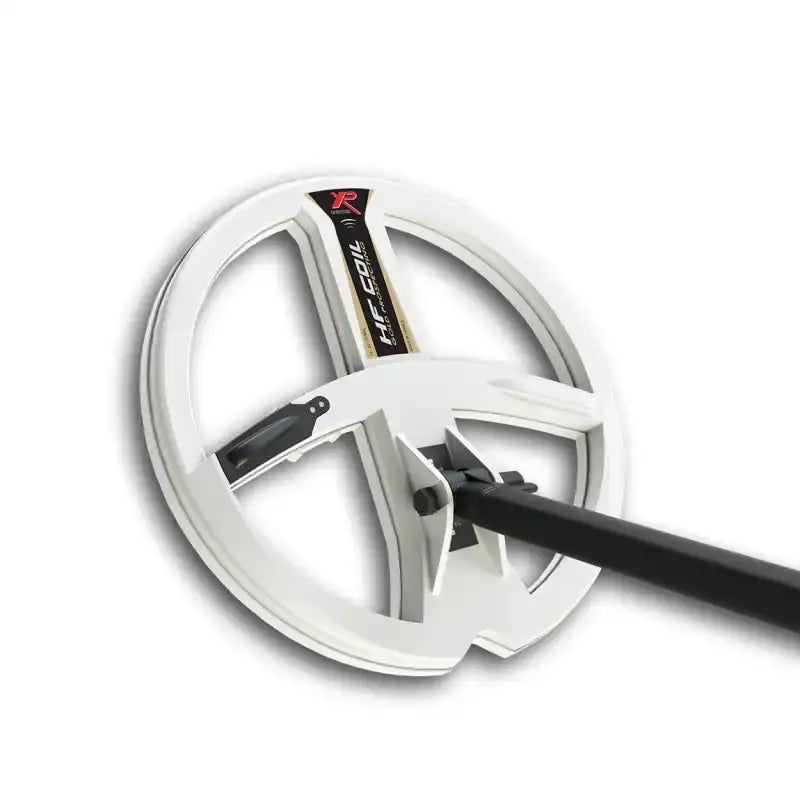

The accompanying 22HF search head (High Frequency, 22 cm) provides a wide frequency range from 13 to 81 kHz. This makes it very effective for detecting small and thin metal objects such as old coins and gold nuggets, even in ferrous or mineral-rich soil.

The difference between 22 cm and 28 cm search head: A 22 cm search head provides more precision, better sensitivity for small objects and easier handling in areas with a lot of iron and tight spaces. A 28 cm search head covers larger areas and provides better depth, but with somewhat lower precision on small finds. The 22HF is therefore a good all-round search head, especially for coins, jewelry and gold prospecting in demanding ground.

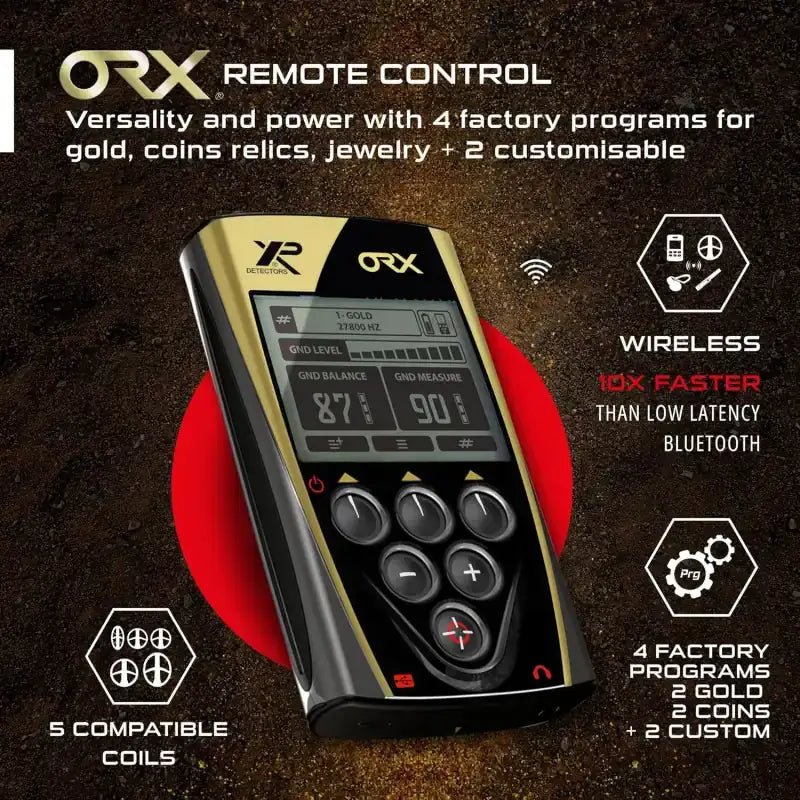

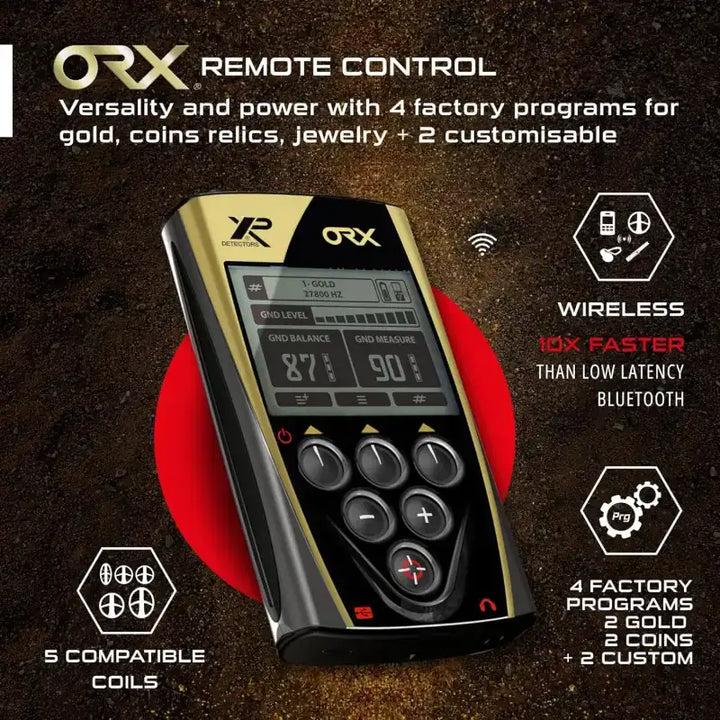

Programs for different needs

• Coin Fast: For coins and jewelry in iron-infested or littered soil
• Coin Deep: For cleaner ground with low mineralization and little litter
• Gold: High sensitivity for medium and large gold nuggets
• Fine Gold: Optimized for small gold nuggets in mineralized areas
• 2 custom programs: Tailor settings to your needs

Ultralight and ergonomic design

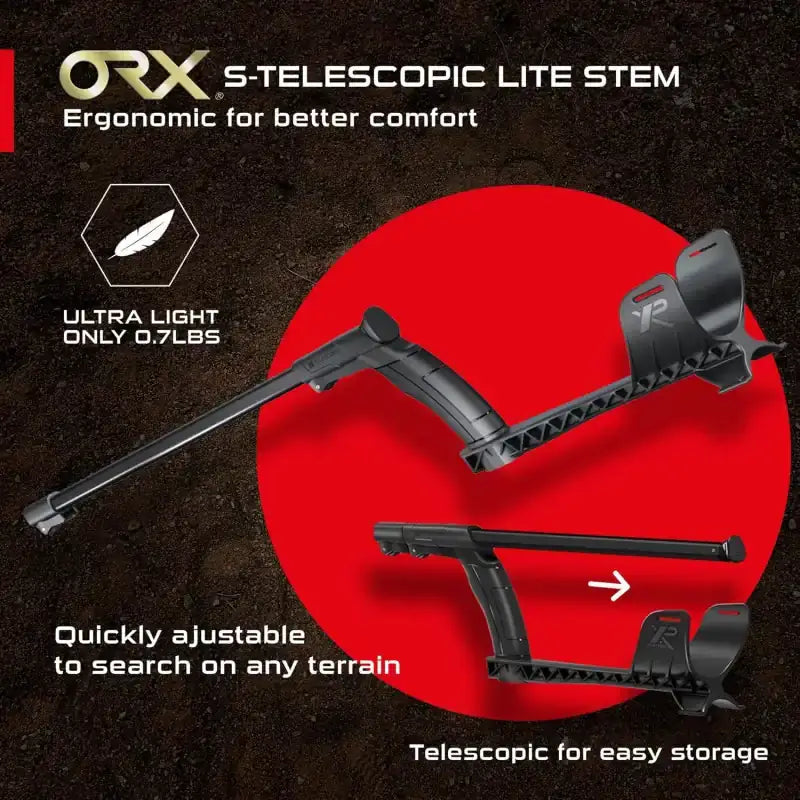

The XP ORX is the world's lightest professional metal detector, weighing only 865 g. If the control unit is mounted on a hip bag (optional accessory), the weight can be reduced to 770 g. The patented S-shaped telescopic pole provides good balance and comfort, so you can search for a long time without getting tired.

Wireless technology and accessories

ORX uses XP's lightning-fast 2.4 GHz radio technology which is up to 10 times faster than Bluetooth:contentReference[oaicite:0]{index=0}. This provides instant sound without delay and low power consumption. The metal detector can be connected wirelessly to:

• WS Audio wireless headphones (optional)
• XP MI-6 pinpointer with direct audio in headphones
• Go Terrain app for Android/iPhone that maps your trips and discoveries

Technical specifications

• Frequency range: 22 cm HF searchcoil: 15/28/54 kHz (+ shift), up to 81 kHz
• Compatibility: HF and X35 searchcoils (22, 28, 34 cm)
• Programs: 4 factory programs + 2 custom
• Sensitivity: 99 levels
• Discrimination: IAR (Iron Amplitude Rejection) + standard
• Reactivity: 4 levels for better signal separation
• Basic balance: Automatic or manual, including salt mode (0–25)
• Item ID: Numeric (0–99) + audio signals
• Display: High-resolution display with backlight
• Battery life: Search head 20–28 hours, remote control approx. 19 hours, headphones approx. 15 hours
• Charging time: approx.3 hours
• Weight: 865 g (770 g with hip bag)
• Search head: Waterproof (requires antenna cable XPDWG115 for underwater use)
• Warranty: 5 years (electronics and parts), 2 years (batteries)

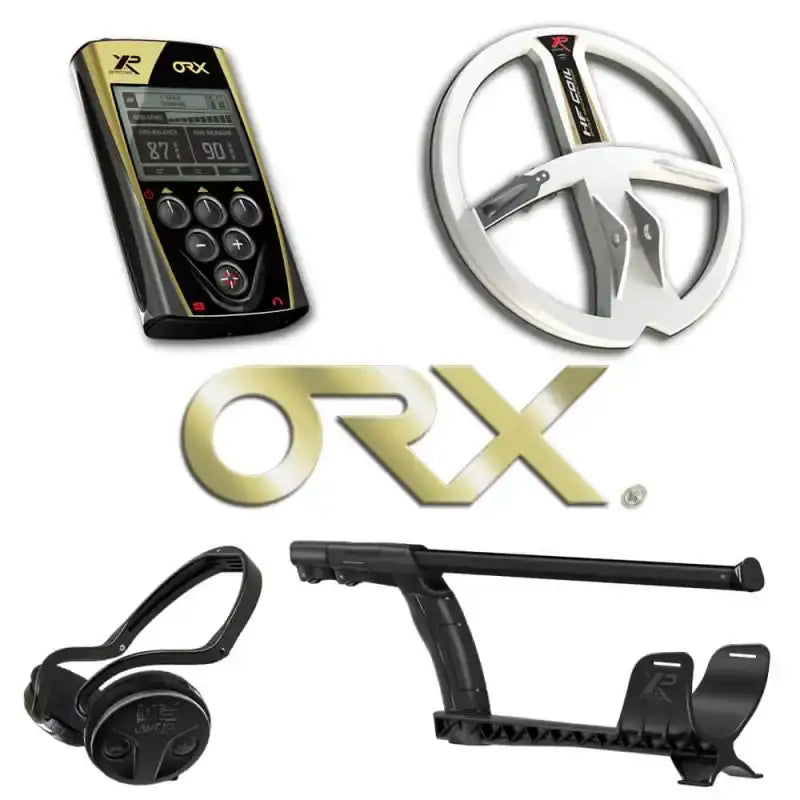

This is included with the XP ORX 22HF

• ORX wireless control unit
• 22 cm HF searchcoil with protective cover
• S-shaped telescopic pole with stepless length adjustment
• Rechargeable batteries (LiPo) for control unit and search head
• USB charging cable with 3 connectors (for control, search head and headphones)
• Charging clip for search head
• English user manual
• 5-year warranty and LONGTIME® certification for at least 10 years of service life

The XP ORX 22HF is a good choice for those who want a lightweight, reliable and powerful metal detector that delivers top performance on both coins, jewelry and natural gold.

Video – see XP ORX in use
